SPECIFICATIONS

Brand Name: tapirapeco

Certification: CE

Choice: yes

Compatible: Ubiquiti

Connector Type: SC/UPC

Fiber Type: Multimode

High-concerned chemical: None

Item Length: 1m

LC Module Commercial temperature range: 0 to 70°C (32 to 158°F)

LC Module Interface type: LC duplex

LC Module Maximum transmission distance: 550m

LC Module Wavelength: 850 nm

LED indicator: PWR, FX Link/Act, TP FDX, TP Link/Act, TP 100, TP 1000

Model Number: 1sfp1e

Origin: Mainland China

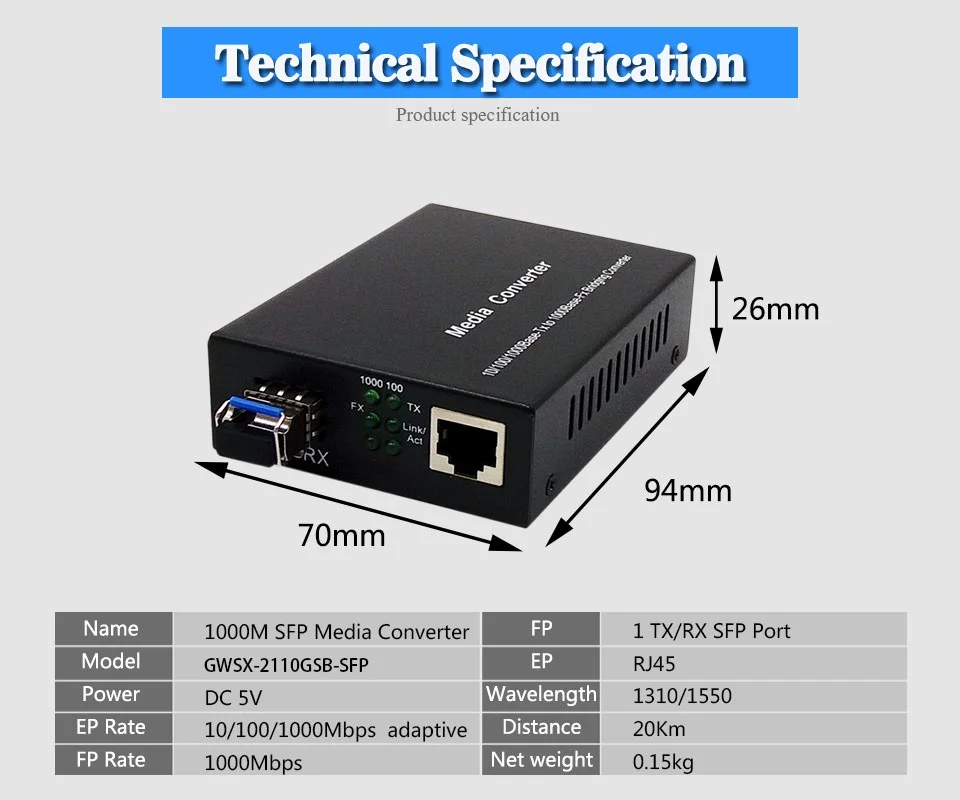

Product size: 94mm*70mm*25mm

Type: SR

Wireless function: No

General Description

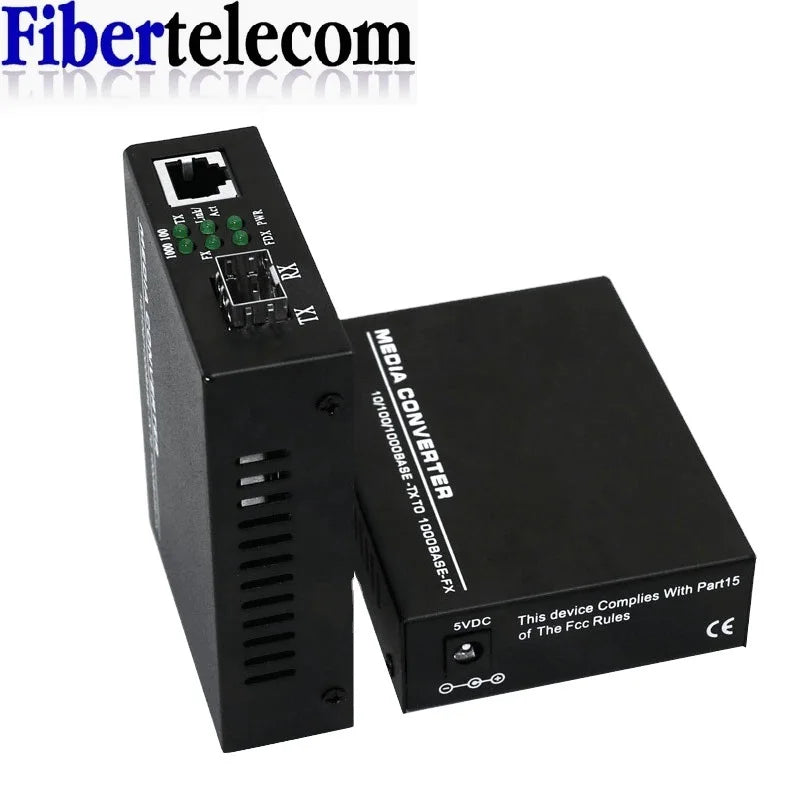

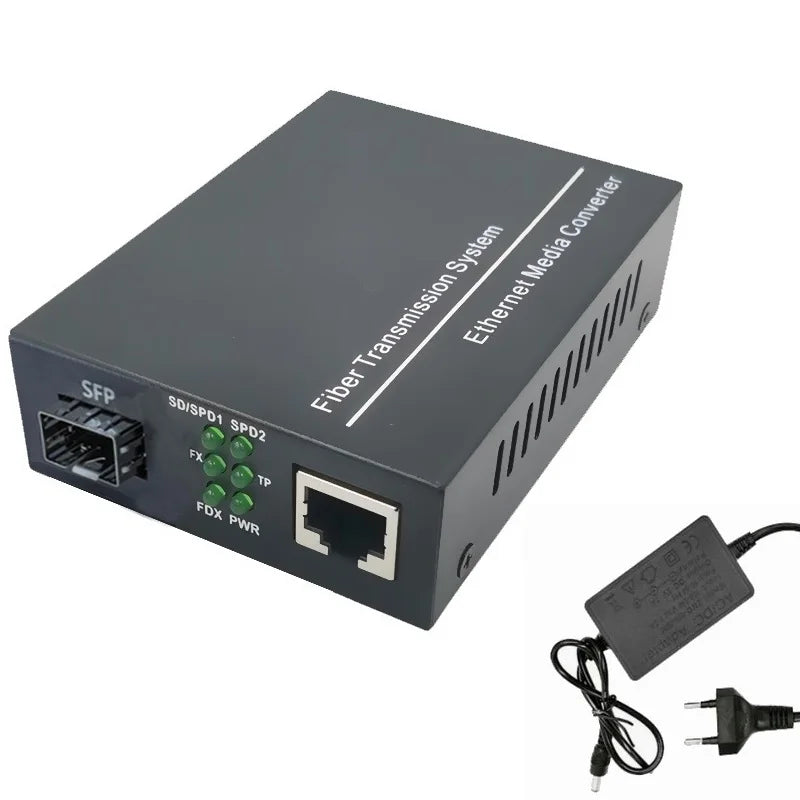

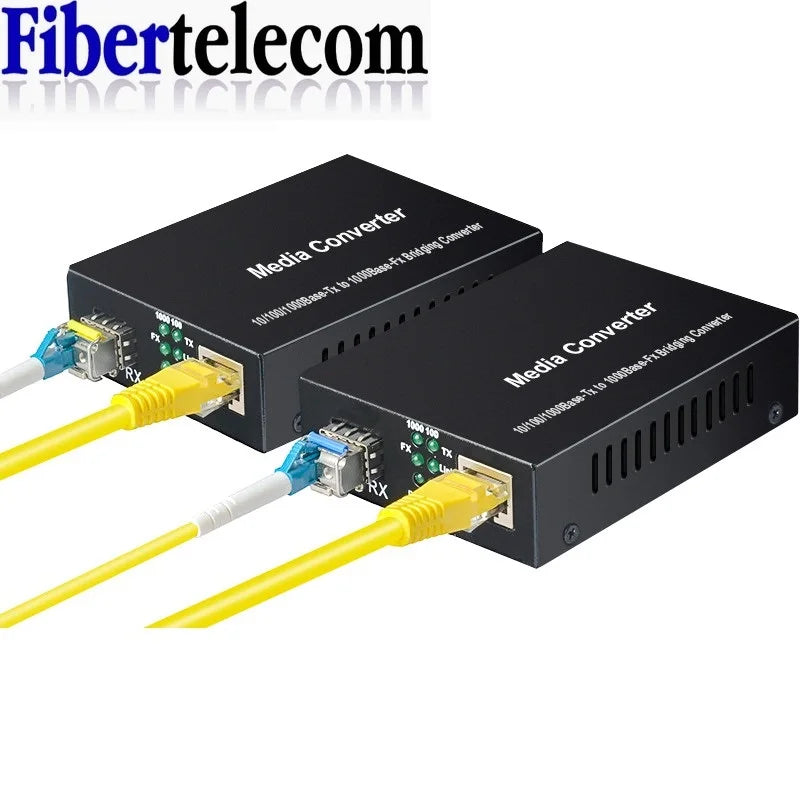

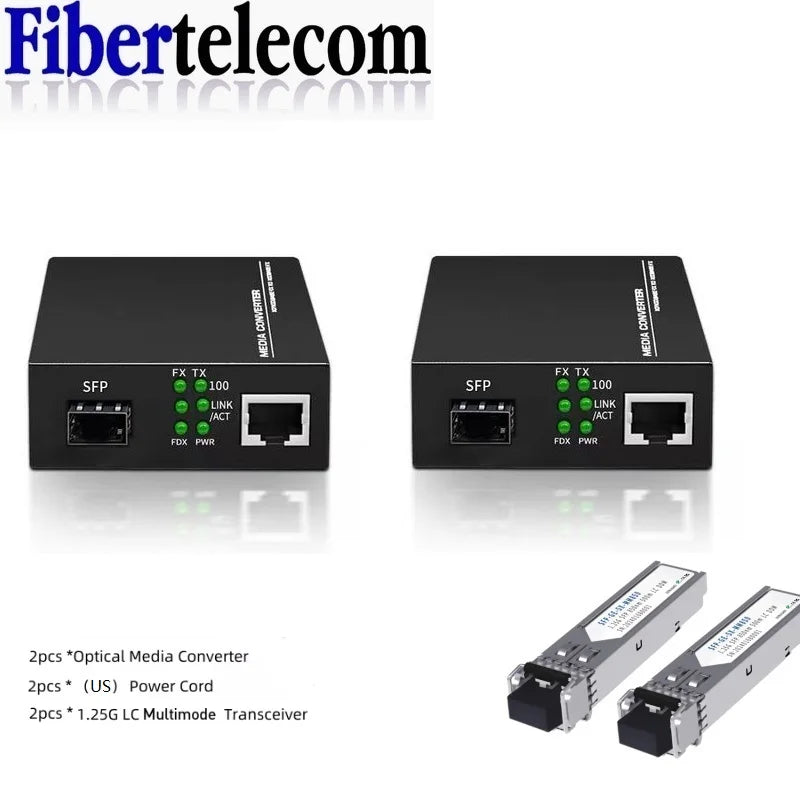

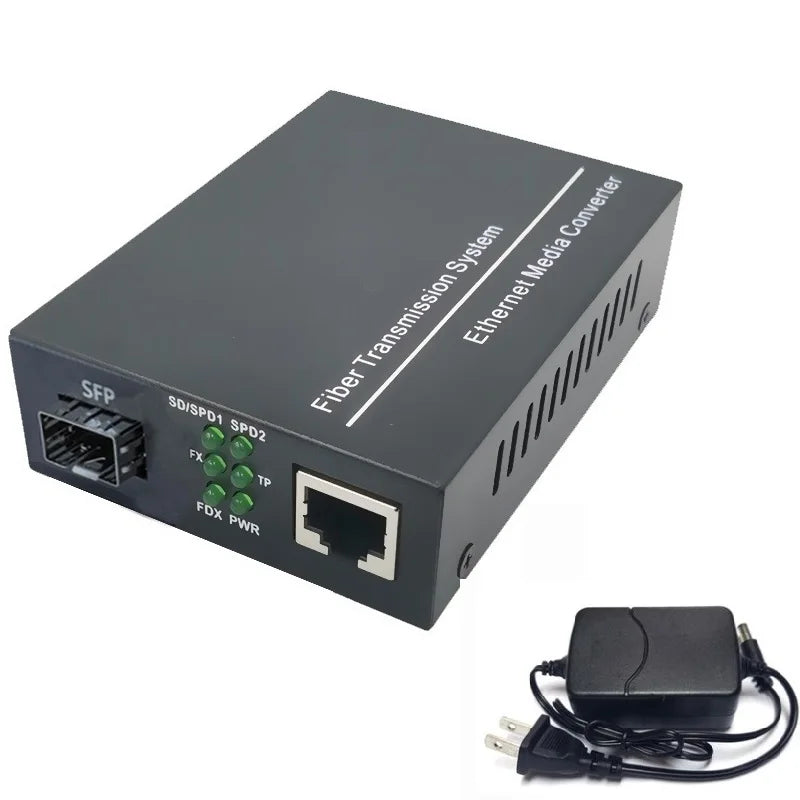

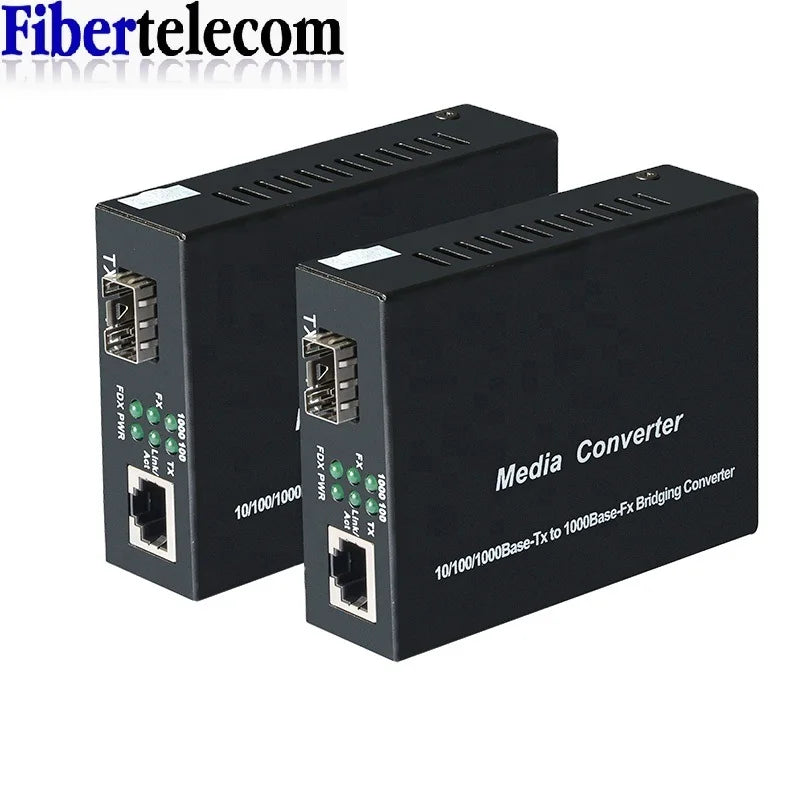

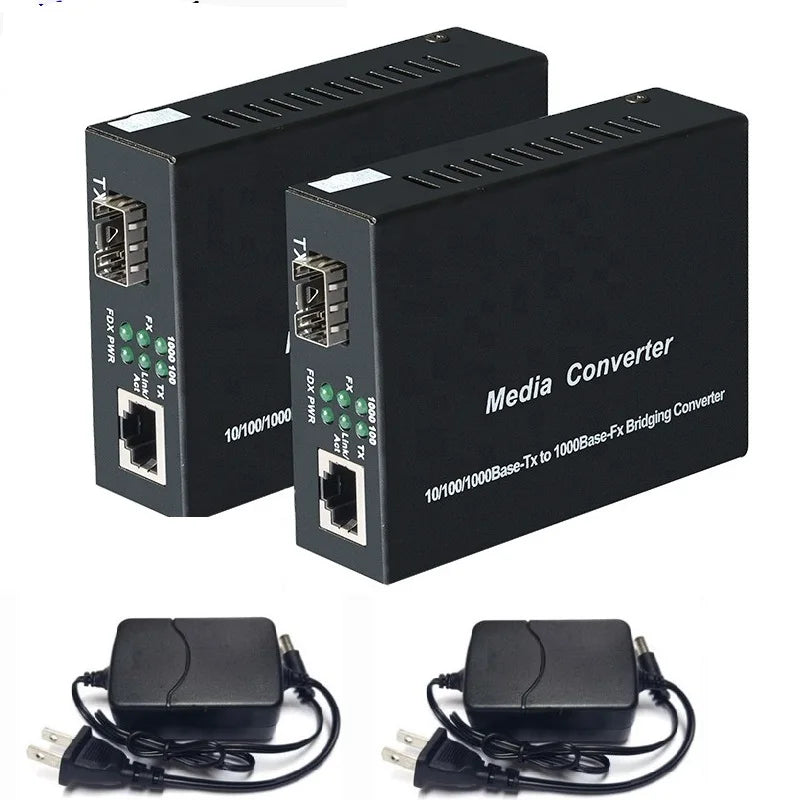

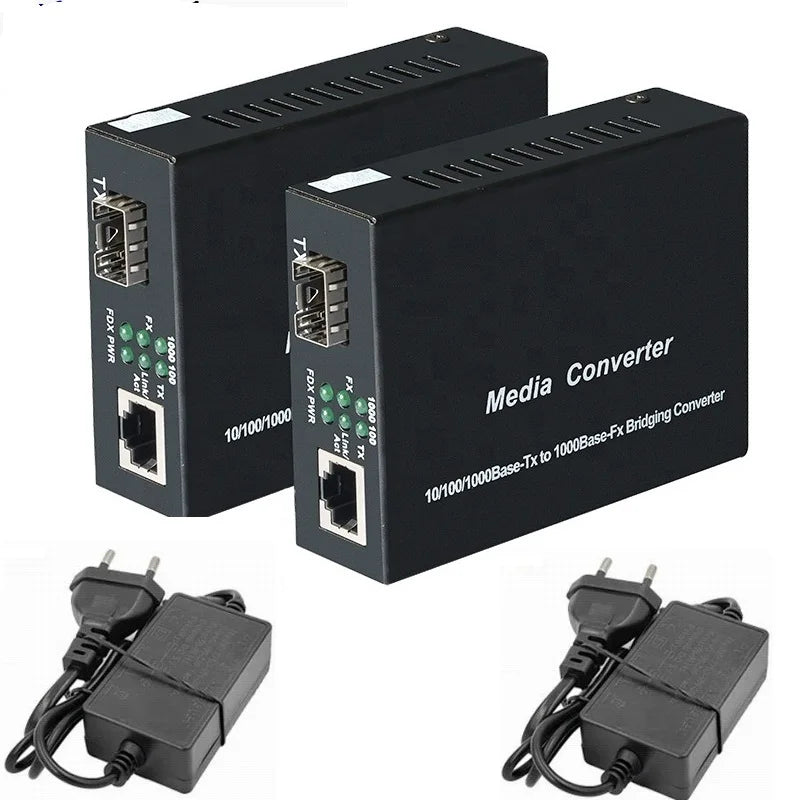

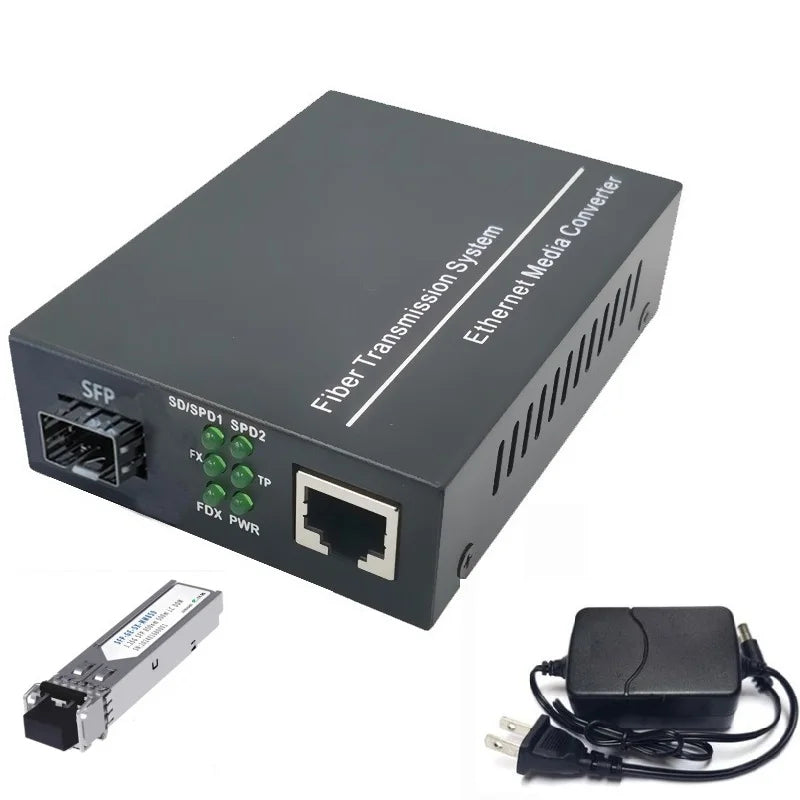

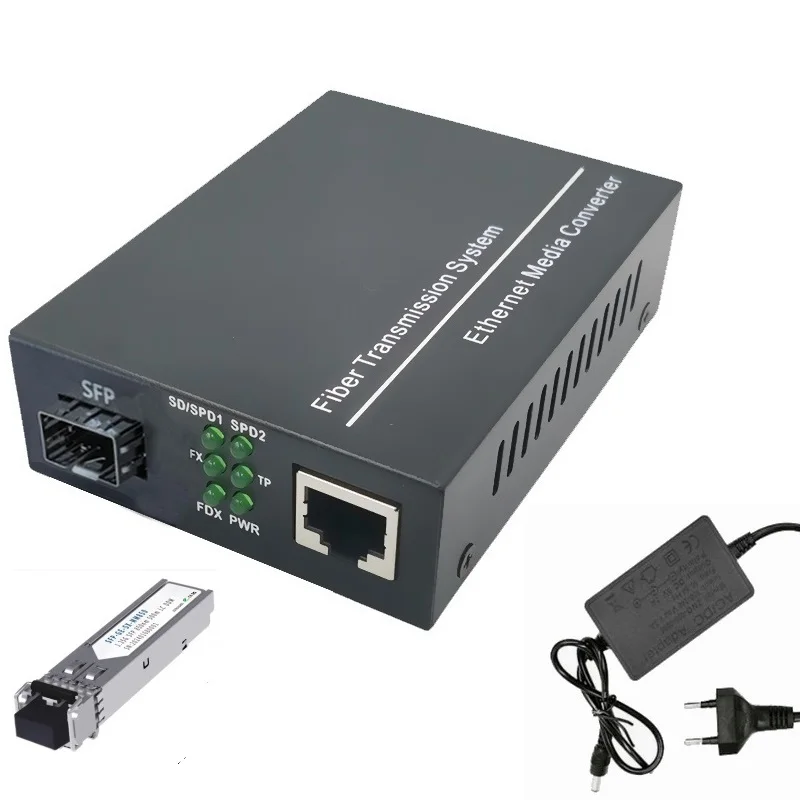

SFP series converter is an Ethernet media converter that converts media transmission between UTP Copper cables and fiber SFP (Small Form-Factor Pluggable) transceiver. It is designed to meet the massive needs for Ethernet network deployment and able to extend a copper based network via fiber cable to a maximum distance up to 120km. It can be installed into a Standard Converter Chassis. The installation & operation procedures are simple & straight forward. Operation status can be locally monitored through a set of Diagnostic LED located in the front panel

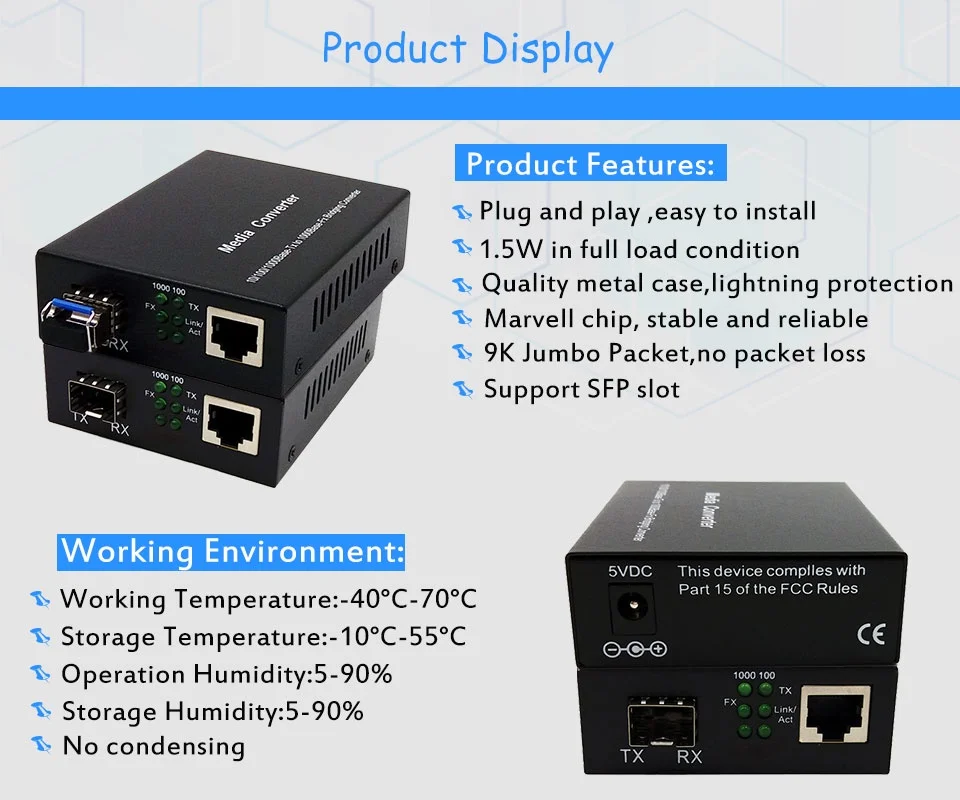

Features

* 100Base-TX/FX or 1000Base-T to 1000BASE-SX/LX Converter

* Standard : IEEE802.3 & IEE802.3u, IEEE 802.3z & 802.3ab

* Interface: 1 x RJ-45 connector / 1 x SFP Slot

* Plug-and-Play installation

* Support Jumbo Frame (64-9216 Byte)

* Conversion between different transmission speeds and media types

* Standalone type or card type ,Can be installed into 2U 14/16Slots chassis

* Auto-negotiating Ethernet port (Half/Full Duplex)

* Auto-crossover Ethernet port (Supports Auto MDI/MDI-X)

* Easy Installation, Easy Trouble shooting

* Dimension: 229x122x50mm for packing, 94x70.6x26.5mm for device

Application

* Extend your Ethernet connection up to 0~120km away using fiber optics.

* Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones.

* Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus).

* Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Ethernet Network.

* Bad industrial environment or high requirements for Lightning protection

* Intelligent transportation supervisory system(ITS) and safe cit

* High-speed way supervisory/Tele-communication system, IP network camera

* Security surveillance system for large corporations, multifunction network system

* Long-distance multimedia schooling/ campus surveillance, long-distance broadcast television transmission system
